Electric Skateboard Weight Limits: A Guide for Heavier Riders
The rated load on an electric skateboard is a safety limit, not a suggestion, and it is set by the weakest component in the chain — usually the deck's flex limit, the trucks, or the motor's thermal cut-out. Ride above it and the board does not simply feel slower: the deck flexes further, the motor runs hotter and derates, braking distance grows, and the components that were sized for a lighter load wear out early. Most electric skateboards sold in South Africa are rated to 120 kg and a few to 150 kg, which leaves heavier riders with a genuinely narrow field. This guide explains what the number means, what to actually plan for, and which boards are rated where.
What the number is actually measuring
A load rating is not a single measurement. It is the point at which the first component in the chain reaches its design limit, and different boards fail differently:

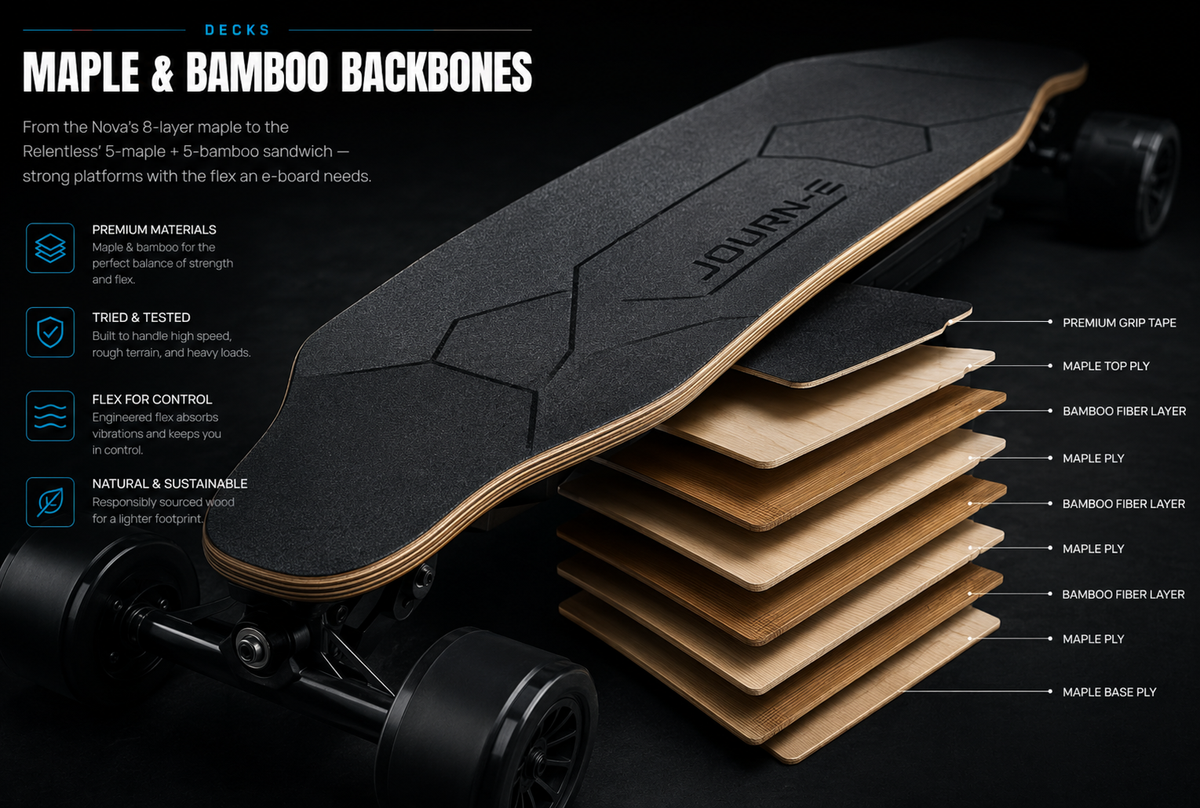

- The deck. A laminated maple or bamboo deck has a flex curve. Beyond its rating it flexes further on every impact, which accelerates delamination and changes how the board handles at speed.
- The trucks and bearings. Side loads in a turn scale with rider mass. Overloaded bearings run hot and fail early.
- The motor's thermal cut-out. This is the one people meet first in practice. A motor moving more mass draws more current, produces more heat, and hits its thermal limit sooner — usually on a hill, usually at the worst moment. The board cuts power to protect itself.
Because the motor is normally the binding constraint, the symptom a heavier rider notices first is not a broken deck. It is a board that loses power partway up a gradient it managed yesterday when it was cooler.
The 85% rule
A practical working rule: aim to be at or under about 85% of the rated load, including whatever you are carrying. A backpack with a laptop and a water bottle is easily 5–8 kg, and it counts.
That means a 120 kg-rated board comfortably suits a rider up to roughly 100 kg with a bag. A 150 kg rating suits a rider up to roughly 125 kg. This is not manufacturer conservatism — it is headroom for the hills, the heat and the years, all three of which reduce the margin you started with.
What actually degrades as you approach the limit
| What changes | Roughly how much | Why |
|---|---|---|
| Range | Noticeably reduced | More mass to accelerate and more rolling resistance; a heavy rider commonly sees 20–30% below a light rider's figure |
| Braking distance | Longer | Regenerative braking has more momentum to absorb through the same wheels |
| Hill climbing | Materially worse | Rated gradients assume a moderate rider; more mass, more heat, earlier thermal derate |
| Speed wobble threshold | Lower | Greater deck flex and a higher centre of mass make the board less settled at speed |
| Component life | Shorter | Bearings, bushings and belts all wear as a function of load |
The Journ-E fleet by rated load
| Board | Rated load | Comfortable rider (85%) | Price | Terrain |
|---|---|---|---|---|
| Nova | 70 kg | ~59 kg | R4,499 | Smooth only |
| Origins | 120 kg | ~102 kg | R9,999 | Street |
| Phantom | 120 kg | ~102 kg | R12,299 | Street |
| Apex | 200 kg | ~170 kg | R17,999 | All-terrain |
| Spartan | 150 kg | ~127 kg | R14,999 | Street / road |
| Relentless | 150 kg | ~127 kg | R19,999 | Off-road |
The table holds a detail worth pausing on: the board with the highest load rating in the fleet is not the most expensive one. The Apex at R17,999 carries 200 kg, fifty more than the R19,999 Relentless. If rider weight is your binding constraint, the answer is not to spend more.
What to buy at each weight
Under 60 kg: the whole fleet is open to you, including the Nova at R4,499. Choose on terrain and distance instead.
60–100 kg: everything except the Nova. Pick on surface and range — Phantom for commuting and best value, Spartan for distance, Apex or Relentless off the tar.
100–127 kg: the 150 kg and 200 kg-rated boards give you real headroom. On tar, the Spartan at R14,999. Off the tar, or if you want the largest load margin in the fleet, the Apex at R17,999.
Above 127 kg: the Apex and its 200 kg rating is the board designed for you — an 8-layer Canadian maple deck, pneumatic tyres and suspension trucks. We are not aware of another board on sale in South Africa near R17,999 with a comparable rating. Treat load as a hard filter and let it eliminate boards before you compare anything else.
Above 170 kg: you are above the 85% margin even on the Apex. Talk to us before ordering rather than riding at the edge of a rating.
Frequently asked questions
What happens if you exceed an electric skateboard's weight limit?
The motor overheats and derates sooner, braking distance grows, deck flex increases and components wear faster. It is a progressive degradation rather than an immediate failure, which is exactly why people ignore it until something breaks.
What is the highest weight limit on an electric skateboard in South Africa?
Of the boards we stock, the Journ-E Apex at 200 kg, for R17,999. Most of the market sits at 120 kg, with some boards at 150 kg.
Does rider weight affect range?
Substantially. A heavier rider commonly sees 20–30% less range than the rated figure, before surface and gradient are accounted for.
Does my backpack count toward the weight limit?
Yes. The rating is total load on the deck, not body weight. A commuting bag is easily 5–8 kg.
Is a heavier rider safe on an electric skateboard?
Yes, on a board rated for them. The risk comes from riding a board rated below your load, where braking, hill performance and deck integrity all degrade at once. Choose the rating first and everything else second.
